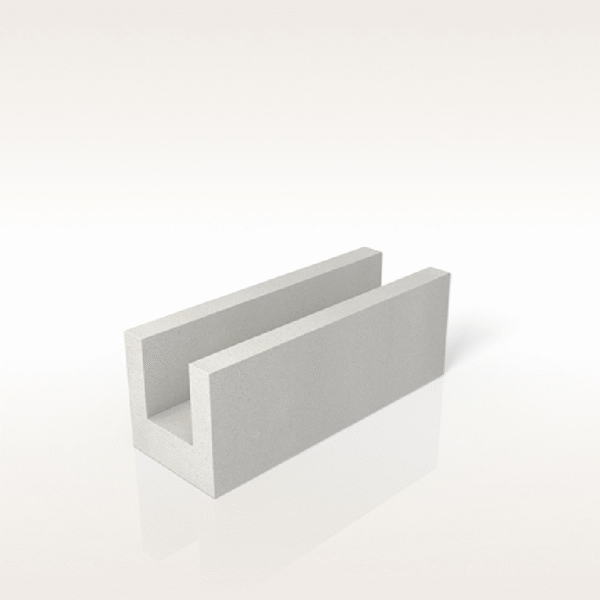

Ytong U Element UP 25
  • Ytong U-Element UP 25
  • Ytong U-Element UP 37.5
  • Ytong U-Element UP 37.5

Ytong U Element UP 25

Ytong “U” elements are used for forming lintels and support beams in horizontal and sloped walls, as well as for additional thermal insulation of lintels above windows and doors.
It is characterized by quick and easy assembly, without the need for concrete molds, has high earthquake resistance, and belongs to fire resistance class A1.

Specific Data

Dimensions and weight
Harmonized standardHARMONIZED STANDARD EN771-4:2011+A1
Length600 mm
Width250 mm
Height200 mm
Gross weight450 kg/m³
