PTP-V U41 ABMX PVC Roof Window

Name: PTP-V U41 ABMX PVC Roof Window
Brand: FAKRO
SKU: FAKRO-PTP-V-U41-ABMX

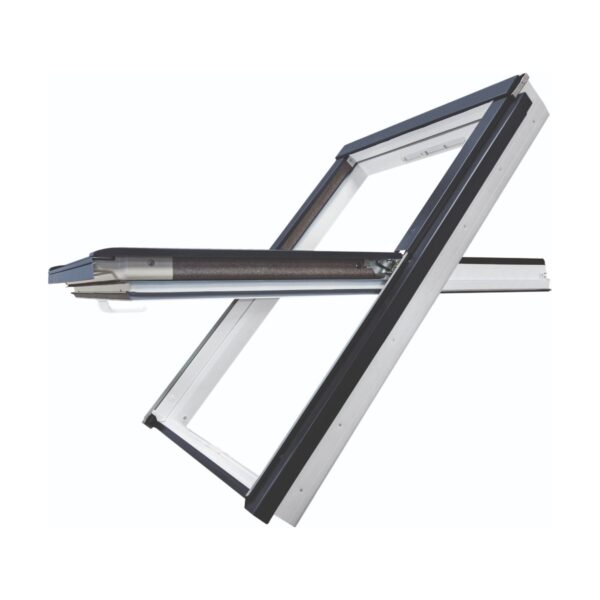

PTP-V U41 ABMX is a pivot roof window with the hinge in the middle of the window height from the GREENVIEW range.
• Multi-chamber PVC profiles strengthened from the inside with galvanised steel
• PVC material does not absorb moisture and is resistant to corrosion
• Window U-value Uw=1.1 W/m²K (1.0 W/m²K with Thermo flashing)
• Acoustic insulation Rw=37 dB
• With air inlet (without air inlet upon request)
• Patented topSafe system supporting burglary resistance

Specific Data

Specific Data

PTP-V U41 ABMX \| TECHNICAL DATA
Parameter	Value
Window U-value	1.1 W/m²K (1.0 W/m²K with Thermo flashing)
Glazing U-value	0.60 W/m²K
Acoustic insulation Rw	37 dB
External glass toughened	+
External glass with easy maintenance layer	–
Internal glass laminated (safe)	–
Air inlet type	With air inlet. With no air inlet upon request.
Multi-point opening	+
Installation range	15-90°
Material	White multi-chamber PVC profiles strengthened with galvanised steel
Code	PTP-V U41 ABMX
Colors	Anthracite RAL 7016 (standard), Grey-brown RAL 7022, Black RAL 9005
