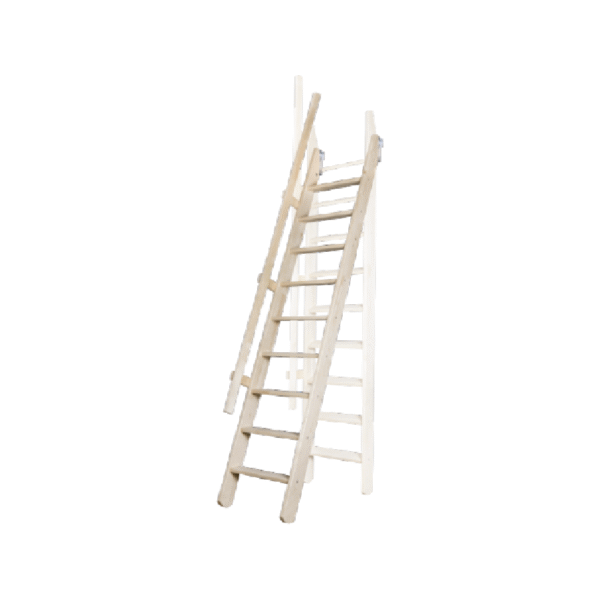

OMP Miller staircase

Name: OMP Miller staircase
Brand: KRONmat
SKU: KM12

Type: Straight ladder, miller type, designed for self-assembly (DIY), thanks to its special design the ladder folds easily and frees up space around it when not in use.

Materials: Made of softwood, support beams 2.7 cm thick. Steps, 2.7 cm thick, connected to the support beams and also reinforced with screws.

Mounting method: It is fixed to the ceiling and floor using the installation kit included with the ladder.

Specific Data
Catalog

Specific Data

Technical Specifications
Size	55	centimeter
Maximum ceiling height	300	centimeter
Minimum ceiling height	200	centimeter
The height of the installed ladder with a handrail	364	centimeter
Height of unfolded stairs with handle	378	centimeter
Minimum ceiling opening dimensions	60×90	centimeter
The space the ladder takes up on the floor	118	centimeter
The space the ladder takes up on the floor with the handle	118	centimeter
The space stairs take up when folded	35	centimeter
Step width	59	centimeter
Number of steps	11 pieces	–
The distance between steps	25	centimeter
Tread width	50	centimeter
Staircase depth	10	centimeter
Angle of inclination	70°	–
Maximum load	150	kilogram
