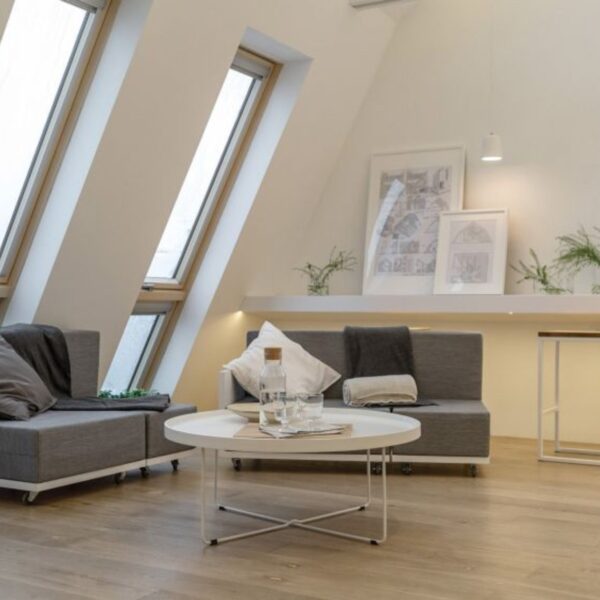

FYP-V proSky is a high pivot roof window whose axis sits above the centre, so the upper part of the sash gives extra daylight.
• Even a tall person can easily walk up to the open window
• The sash opened between 0° and 45° is held in any position by the supporting mechanism
• U3 glazing unit as standard, Uw=1.3 W/m²K, automatic V40P air inlet
• Vacuum impregnated pine wood, double coated with acrylic lacquer
• thermoPro technology and TopSafe system as standard
• Suitable for roof pitches 20-65°
Dimensions:
66×118, 66×140, 78×98, 78×118, 78×140, 78×160, 78×180, 94×140, 94×160, 94×180, 114×140 [cm]
| FYP-V proSky | TECHNICAL DATA | |
| Parameter | Value |
| Roof pitch | 20-65° |
| Window U-value (U3) | 1.3 W/m²K |
| Glazing U-value (U3) | 1.0 W/m²K |
| Acoustic insulation Rw (U3) | 32 dB |
| Glazing unit (U3) | 4H-16-4T |
| Inert gas filling (U3) | argon |
| External glass toughened (U3) | + |
| Air inlet type (U3) | V40P |
| Number of varnish coats (U3) | 2 |
| Number of seals (U3) | 4 |
| Multi-point opening (U3) | + |
| Handle (U3) | Elegant |
