Fermacell Floor Elements
  • Fermacell Floor Elements

Fermacell Floor Elements

Fermacell floor systems are designed for use as floating floors in a wide range of applications. Made from Fermacell Gypsum Fibreboard or Fermacell Powerpanel H₂O boards, they offer a dry, robust, and simple solution for your flooring requirements.

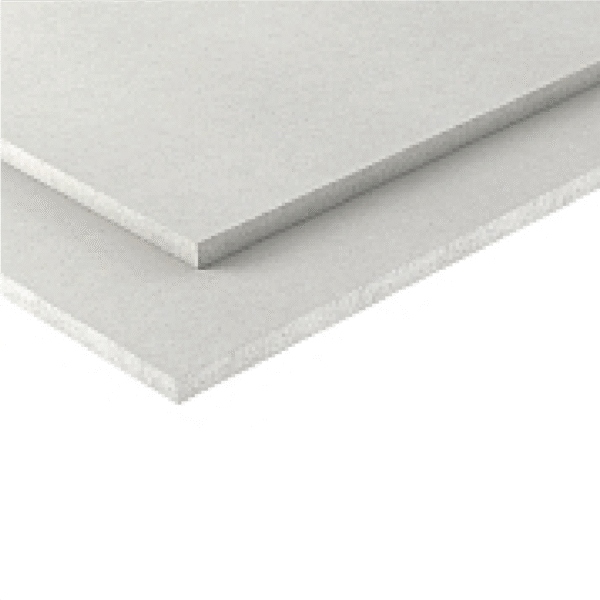

The Fermacell floor elements consist of two Fermacell Gypsum Fibreboards of 10 mm or 12.5 mm thickness, factory-glued. The two boards are offset from each other, creating a 50 mm wide staggered edge.
The dimensions of the element are 1500 × 500 mm (with a surface area of 0.75 m²).
Fermacell floor elements are available with or without various insulating layers and are installed as floating floors, laid one after another.

Specific Data

Characteristic values
Gross density1150 ± 50 kg/m³
Water vapor diffusion resistance coefficient (μ)13
Thermal conductivity (λ)0.32 W/mK
Specific heat capacity (c)1.1 kJ/(kg·K)
Brinell hardness30 N/mm²
Increased thickness after 24-hour immersion in waterLess than 21%
Coefficient of thermal expansion0.001 %/K
Expansion/contraction due to a 30% change in relative humidity (20 °C)0.25 mm/m
Moisture content at 651 TP3T, relative humidity, and an air temperature of 20 °C.1.3%
pH value7 – 8

Catalog

Fermacell and James Hardie Advantages

PDF brochure with the advantages of Fermacell and James Hardie systems
